Bridge Mode by Chrome Extension#

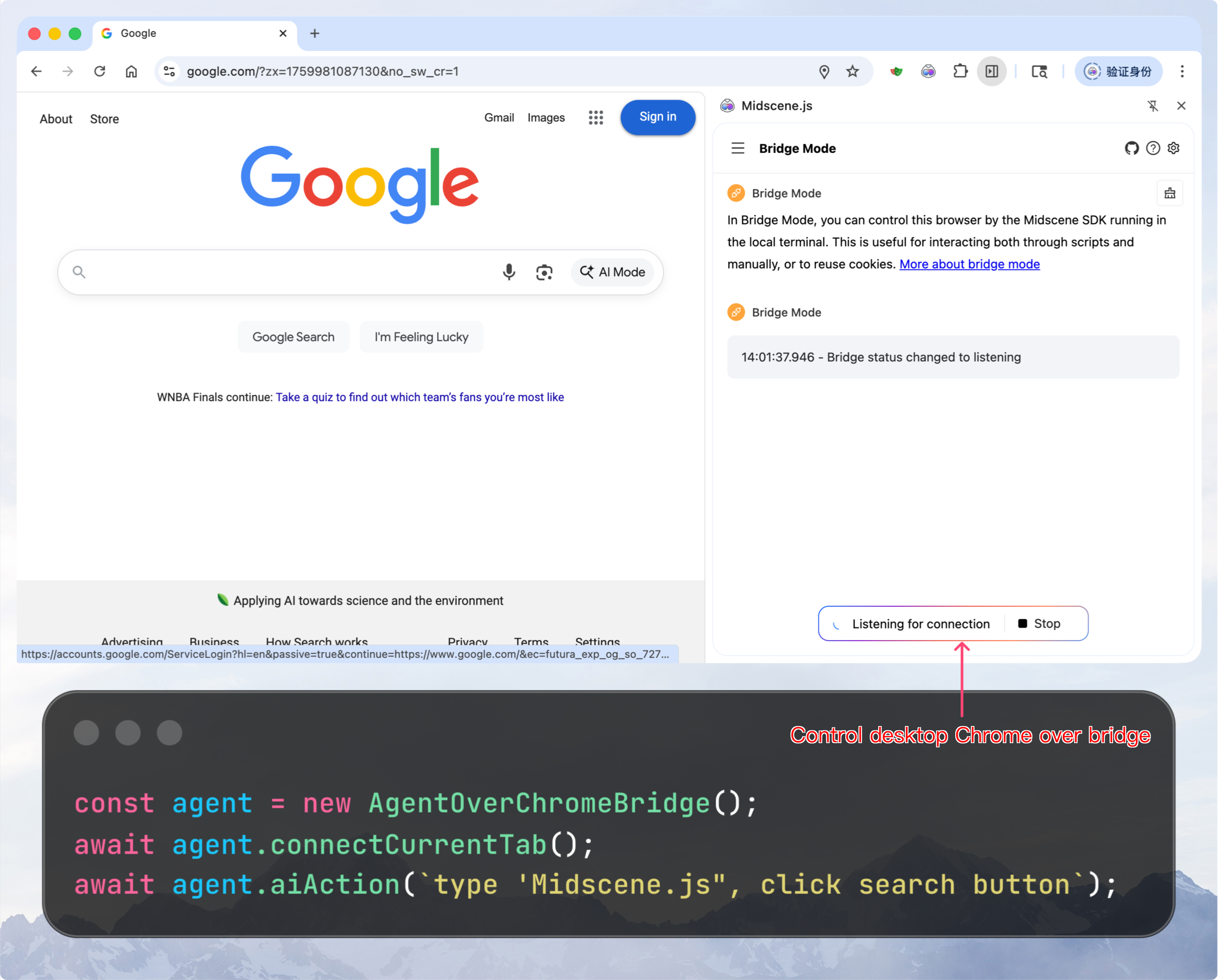

The bridge mode in the Midscene Chrome extension is a tool that allows you to use local scripts to control the desktop version of Chrome. Your scripts can connect to either a new tab or the currently active tab.

Using the desktop version of Chrome allows you to reuse all cookies, plugins, page status, and everything else you want. You can work with automation scripts to complete your tasks. This mode is commonly referred to as 'man-in-the-loop' in the context of automation.

Preparation#

1. Config the OpenAI API key, or customize model and provider

# replace with your own
export OPENAI_API_KEY="sk-abcdefghijklmnopqrstuvwxyz"

2. Install Midscene extension from Chrome web store

Step 1. install dependencies#

npm install @midscene/web tsx --save-dev

Step 2. write scripts#

Write and save the following code as ./demo-new-tab.ts.

import { AgentOverChromeBridge } from "@midscene/web/bridge-mode";

const sleep = (ms) => new Promise((r) => setTimeout(r, ms));
Promise.resolve(
  (async () => {
    const agent = new AgentOverChromeBridge();

    // This will connect to a new tab on your desktop Chrome
    // remember to start your chrome extension, click 'allow connection' button. Otherwise you will get an timeout error
    await agent.connectNewTabWithUrl("https://www.bing.com");

    // these are the same as normal Midscene agent
    await agent.ai('type "AI 101" and hit Enter');
    await sleep(3000);

    await agent.aiAssert("there are some search results");
    await agent.destroy();
  })()
);

Step 3. run#

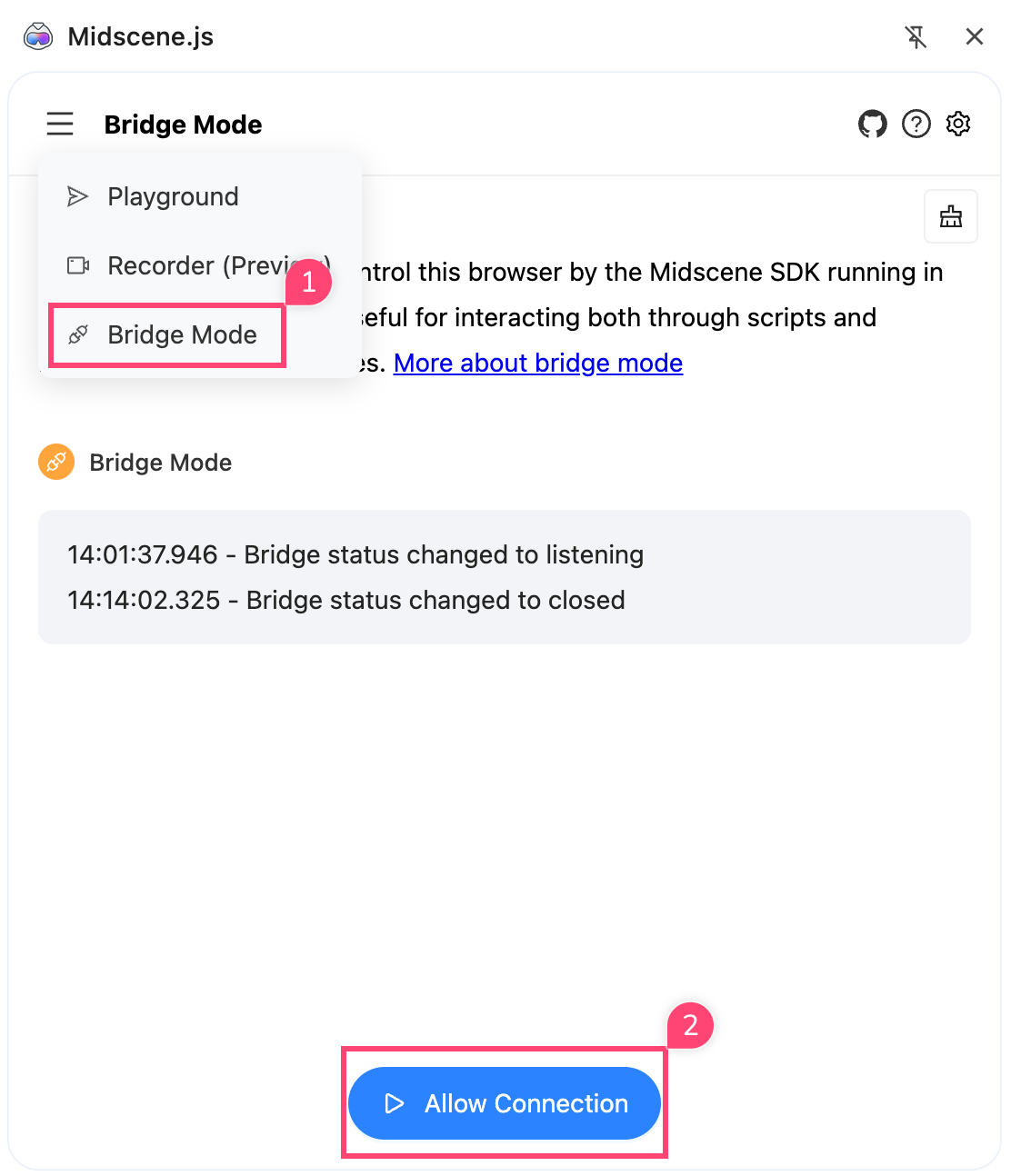

Launch your desktop Chrome. Start Midscene extension and switch to 'Bridge Mode' tab. Click "Allow connection".

Run your scripts

tsx demo-new-tab.ts

After executing the script, you should see the status of the Chrome extension switched to 'connected', and a new tab has been opened. Now this tab is controlled by your scripts.

API#

Except the normal agent interface, AgentOverChromeBridge provides some other interfaces to control the desktop Chrome.

connectCurrentTab(options?: { trackingActiveTab?: boolean })#

Connect to the current active tab on Chrome.

If trackingActiveTab is true, the agent will always track the active tab. For example, if you switch to another tab or a new tab is opened, the agent will track the latest active tab. Otherwise, the agent will only track the tab you connected to initially.

connectNewTabWithUrl(url: string, options?: { trackingActiveTab?: boolean })#

Create a new tab with url and connect to immediately.

destroy#

Destroy the connection.

Use bridge mode in yaml-script#

Yaml scripts is a way for developers to write automation scripts in yaml format, which is easy to read and write comparing to javascript.

To use bridge mode in yaml script, set the bridgeMode property in the target section. If you want to use the current tab, set it to currentTab, otherwise set it to newTabWithUrl.

For example, the following script will open a new tab by Chrome extension bridge:

target:
  url: https://www.bing.com
+ bridgeMode: newTabWithUrl
tasks:

Run the script:

midscene ./bing.yaml

Remember to start the chrome extension and click 'Allow connection' button after the script is running.

Unsupported options#

In bridge mode, these options will be ignored (they will follow your desktop browser's settings):

• userAgent

• viewportWidth

• viewportHeight

• viewportScale

• waitForNetworkIdle

• cookie
